Txoj Cai Ua Haujlwm
Lub kaw lus siv lub tshuab Pressure Swing Adsorption (PSA), siv cov cua compressed raws li cov khoom noj thiab ua tiav kev sib cais thiab kev ua kom huv los ntawm kev xaiv adsorption ntawm oxygen thiab nitrogen los ntawm carbon molecular sieves.
Purified compressed cua nkag mus rau Adsorption Ntauwd A; Nyob rau hauv lub siab, oxygen thiab tej yam impurity gases yog adsorbed los ntawm molecular sieves, thaum nitrogen tawm hauv lub pej thuam thiab ntws mus rau hauv downstream khoom tank cia. Raws li Adsorption Ntauwd A ze rau qhov saturation, lub kaw lus tswj tau hloov li qub, hloov ib feem ntawm cov khoom siv roj los ntxuav thiab rov tsim dua Adsorption Tower B, yog li tso tawm cov pa oxygen yav dhau los. Ob lub yees hloov ntawm adsorption thiab rov tsim dua tshiab; ua ke nrog qhov sib npaug thiab tsis muaj qhov cuam tshuam ntawm cov dej ntws tsis txaus tank thiab cov khoom lag luam hauv qab, qhov no ua kom muaj kev ruaj khov, ruaj khov, thiab siab - zoo nitrogen mov.
Kev ua haujlwm hauv nruab nrab yog tswj hwm los ntawm kev tswj hwm kev sib koom ua ke, nrog kev sib koom ua ke ntawm cov chav nyob kom ntseeg tau tias kev ua haujlwm tau zoo thoob plaws tag nrho cov txheej txheem saw - los ntawm huab cua purification mus rau cov zis ntawm cov nitrogen tiav.
Khoom nta

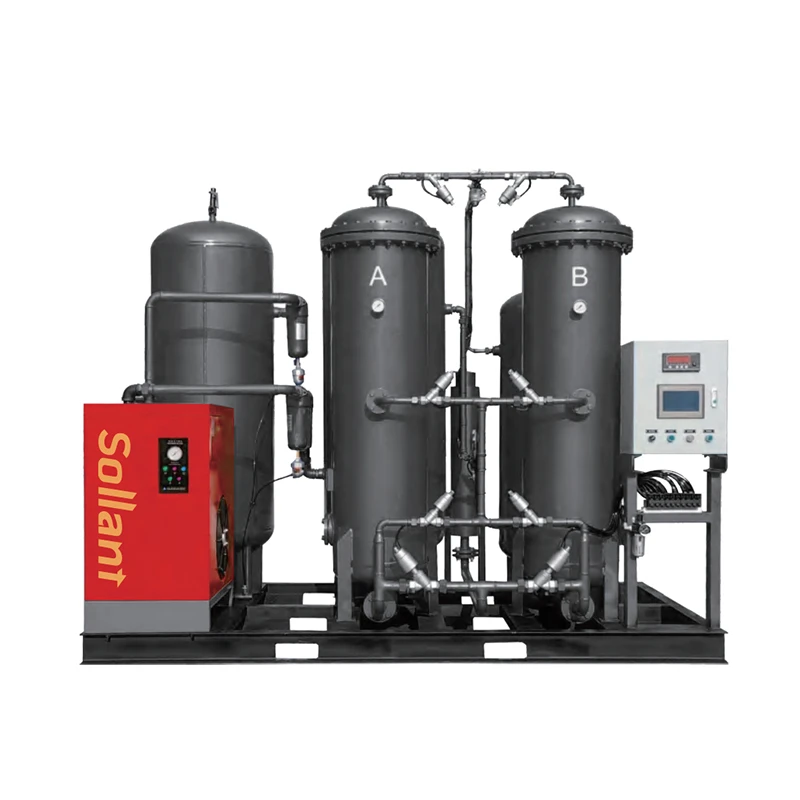

Integrated Design
Integrate lub compressed cua purification system, nitrogen buffer tso tsheb hlau luam (inlet / qhov hluav taws xob), thiab lub PSA nitrogen generator rau hauv ib chav tsev. Nws yog ib qho yooj yim rau nruab-yuav tsum tau tsuas yog ib qho yooj yim kev twb kev txuas mus rau ib tug compressed cua qhov chaw- thiab xa ib tug ruaj khov tso zis ntawm siab - purity nitrogen nrog ib tug tsawg dew point.
Saj zawg zog Configuration
Lub tshuab lim cua compressed tuaj yeem hloov kho tau yooj yim nrog cov tub yees tshuab ziab khaub ncaws, lim lim, lossis cov tshuab desiccant kom haum rau cov xwm txheej siv cua sib txawv thiab cov kev xav tau zoo. Cov no tuaj yeem sib xyaw ua ke thiab nruab rau tib lub caij nyoog, ua tau raws li ntau yam kev ua haujlwm los ntawm cov ntawv thov kev lag luam rau cov uas xav tau kom qhuav qhuav, ua tiav tiag tiag ntawm -xav tau kev teeb tsa.
Kev koom ua ke siab
Integates ntau yam ntawm nws tus kheej npaj cov khoom siv rau hauv ib qho kev sib koom ua ke, sib koom ua ke hauv kev tswj hwm hauv nruab nrab. Cov chav nyob ua haujlwm ua ke hauv tandem, ua tiav kev tswj hwm ntawm tag nrho cov txheej txheem los ntawm huab cua purification mus rau nitrogen ntau lawm, ua kom tag nrho cov kev ua tau zoo ntawm chav tsev.
Variable Frequency Zog Txuag
Nruab nrog lub ntse hloov pauv zaus tswj qhov system, nws tuaj yeem taug qab cov kev hloov pauv hauv cov huab cua hauv qab thiab kho lub cev ua haujlwm ntawm lub sijhawm. Txawm hais tias nws yog lub sijhawm siv roj ntau tshaj plaws, tawm - lub sijhawm siab tshaj, lossis tsis sib xws, cov khoom siv tuaj yeem ua haujlwm ntawm qib kev siv hluav taws xob ntau tshaj plaws, ua tiav lub zog tseem ceeb- txuag cov teebmeem.

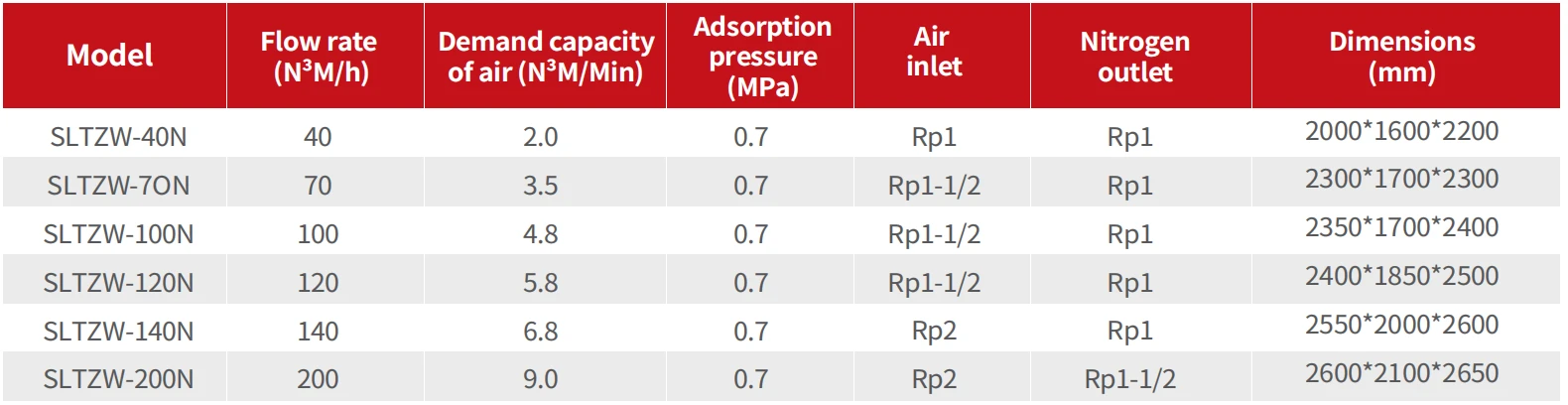

Technical Specifications ntawm Combined Nitrogen Gas Generator
Qhov zoo ntawm Core Components
Refrigerated Dryer Configuration:Nta lub tshuab ziab khaub ncaws thiab peb -theem precision lim; ua tiav qhov hluav taws xob siab dew point ntawm -20 degree, ua tau raws li feem ntau cov kev xav tau ntawm kev lag luam.
Adsorption Dryer Configuration:Nta lub tshuab ua kom sov lossis tsis muaj cua sov regenerative adsorption tshuab thiab ntau -theem lim; ua tiav qhov hluav taws xob siab dew point ntawm -40℃rau -60 degree, haum rau cov ntawv thov uas xav tau nitrogen tsis tshua muaj, xws li cov khoom siv hluav taws xob, tshuaj, thiab kev lag luam precision machining.
Lub tshuab ua kom huv thiab cov khoom siv nitrogen sib koom ua ke ib qho kev sib tw thiab ua kom muaj kev sib txuas ntawm cov kav dej, txo qis cov kav dej nruab nrab thiab kev pheej hmoo ntawm huab cua.
Inlet / Outlet Buffer Tanks:Tsim los ntawm siab - zoo carbon steel los yog stainless hlau nrog ntim sib npaug rau cov haujlwm tshwj xeeb; ua tau zoo dampens siab hloov pauv hauv cov dej nkag thiab qhov hluav taws xob kom ntseeg tau tias kev ua haujlwm ruaj khov.
PSA Nitrogen Generation Unit:Features ib tug dual-ntaus qauv siv siab- zoo carbon molecular sieves thiab ib tug siab - ceev packing txheej txheem; siab -kev ua tau zoo airflow distributors nyob rau hauv lub yees kom pom kev zoo adsorption efficiency, thaum lub pneumatic valve los ua ke muab cov lus teb sai thiab txhim khu kev qha sealing.
